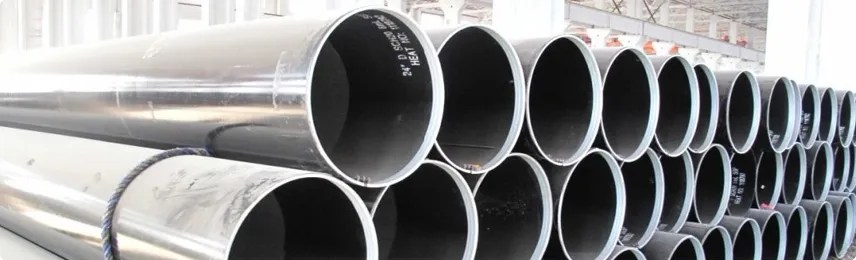

API 5L ERW Pipe
Type | Carbon Steel ERW Pipes |
---|---|
Pipe Size | Sizes (Seamless): 1/2” NB - 60” NB Sizes (ERW): 1/2” NB - 24” NB Sizes (SAW): 16” NB - 100” NB |
Wall Thickness | SCH10,SCH20,SCH30,STD,SCH40,SCH60,XS,SCH80,SCH100,SCH120, SCH140,SCH160,XXS DIN, JIS standard thickness |
Length | Fixed: 5.8, 6.0, 11.8, 12.0m Random length: 5-12m |
Standard | ASTM A53, A106, API 5L, ASME B36.10M-1996 DIN1626, DIN1629, DIN17175, DIN 2448 JIS G3452, JIS G3454, JIS G3455, JIS G3456, JIS G3457, JIS G3461 |
Material | Q235, Q345, A53B, A106B, API 5L B, X42, X46, X52, X60, X65 ST37.0, ST35.8, St37.2, St35.4/8, St42, St45, St52, St52.4 STP G38, STP G42, STPT42, STB42, STS42, STPT49, STS49 |
Application | Low and middle pressure fluid pipeline, boiler, petroleum and natural gas industry, drilling, chemical industry, electric industry, shipbuilding, fertilizer equipment and pipeline, structure, petrochemical, pharmaceutical industry |
Surface | Black painting, varnish paint, anti rust oil, hot galvanized, cold galvanized, 3PE |
Package | Plastic caps on both ends, Steel bundle, Woven bag or acc. to customers' request |
MOQ | 1 ton |
Production Capacity | 5000 T/M |
Delivery Time | Within 2 Weeks |
Best Rate Guarantee |
High Temperature Seamless Pipe | ASTM A106 Gr. B/C, API 5L Gr. B, ASTM A53 Gr. B |
Heat Exchanger Seamless Tube | ASTM A179 |
Low Temperature Seamless Pipe | ASTM A333 Gr. 3/6 |
Low Temperature Seamless Tube | ASTM A334 Gr. 6 |
High Yield Seamless Pipe | API 5L Gr. X42/X46/X52/X56/X60/X65/X70/X80 PSL-1/PSL-2 |
High Yield Seamless Pipe | ISO 3183 Gr.L245, L290, L320, L360, L390, L415, L450, L485 |
Atmospheric & Low Temp EFW Pipes | ASTM A671 Gr. CC60/CC65/CC70 |
High Pressure & Moderate Temp EFW Pipes | ASTM A672 Gr. B60/B65/B70/C55/C60/C65/C70 |
High Yield ERW/SAW Pipe | API 5L Gr. X42/X46/X52/X56/X60/X65/X70/X80 PSL-1/PSL-2 |
High Yield ERW/SAW Pipe | ISO 3183 Gr.L245, L290, L320, L360, L390, L415, L450, L485 |
PSL 1 |
|||||||||
GRADE |
Chemical Composition |
Mechanical Property |
|||||||
C (Max) |
Mn (Max) |
P (Max) |
S (Max) |
TENSILE ( Min ) |
YIELD ( Min ) |
||||
Psi X 1000 |
Mpa |
Psi X 1000 |
Mpa |
||||||
A25 |
CL I |
0.21 |
0.60 |
0.030 |
0.030 |
45 |
310 |
25 |
172 |
CL II |
0.21 |
0.60 |
0.030 |
0.030 |
|||||
A |
0.22 |
0.90 |
0.030 |
0.030 |
48 |
331 |
30 |
207 |
|
B |
0.26 |
1.20 |
0.030 |
0.030 |
60 |
414 |
35 |
241 |
|
X42 |
0.26 |
1.30 |
0.030 |
0.030 |
60 |
414 |
42 |
290 |
|
X46 |
0.26 |
1.40 |
0.030 |
0.030 |
63 |
434 |
46 |
317 |
|
X52 |
0.26 |
1.40 |
0.030 |
0.030 |
66 |
455 |
52 |
359 |
|
X56 |
0.26 |
1.40 |
0.030 |
0.030 |
71 |
490 |
56 |
386 |
|
X60 |
0.26 |
1.40 |
0.030 |
0.030 |
75 |
517 |
60 |
414 |
|
X65 |
0.26 |
1.45 |
0.030 |
0.030 |
77 |
531 |
65 |
448 |
|
X70 |
0.26 |
1.65 |
0.030 |
0.030 |
82 |
565 |
70 |
483 |
PSL 2 |
||||||||||||
GRADE |
Chemical Composition |
Mechanical Property |
||||||||||
C (Max) |
Mn (Max) |
P (Max) |
S (Max) |
Tensile |
Yield |
C. E. IMPACT ENERGY |
||||||
Psi x 1000 |
Mpa |
Psi x 1000 |
Mpa |
PCM |
IIW |
J |
FT/LB |
|||||
B |
0.22 |
1.20 |
0.025 |
0.015 |
60 - 110 |
414 - 758 |
35 - 65 |
241 - 448 |
0.25 |
0.43 |
T/L 27/41 |
T/L 20/30 |
X42 |
0.22 |
1.30 |
0.025 |
0.015 |
60 - 110 |
414 - 758 |
42 - 72 |
290 - 496 |
0.25 |
0.43 |
T/L 27/41 |
T/L 20/30 |
X46 |
0.22 |
1.40 |
0.025 |
0.015 |
63 - 110 |
434 - 758 |
46 - 76 |
317 - 524 |
0.25 |
0.43 |
T/L 27/41 |
T/L 20/30 |
X52 |
0.22 |
1.40 |
0.025 |
0.015 |
66 - 110 |
455 - 758 |
52 - 77 |
359 - 531 |
0.25 |
0.43 |
T/L 27/41 |
T/L 20/30 |
X56 |
0.22 |
1.40 |
0.025 |
0.015 |
71 - 110 |
490 - 758 |
56 - 79 |
386 - 544 |
0.25 |
0.43 |
T/L 27/41 |
T/L 20/30 |
X60 |
0.22 |
1.40 |
0.025 |
0.015 |
75 - 110 |
517 - 758 |
60 - 82 |
414 - 565 |
0.25 |
0.43 |
T/L 27/41 |
T/L 20/30 |
X65 |
0.22 |
1.45 |
0.025 |
0.015 |
77 - 110 |
531 - 758 |
65 - 82 |
448 - 565 |
0.25 |
0.43 |
T/L 27/41 |
T/L 20/30 |
X70 |
0.22 |
1.65 |
0.025 |
0.015 |
82 - 110 |
565 - 758 |
70 - 82 |
483 - 565 |
0.25 |
0.43 |
T/L 27/41 |
T/L 20/30 |
X80 |
0.22 |
1.90 |
0.025 |
0.015 |
90 - 120 |
621 - 827 |
80 - 102 |
552 - 705 |
0.25 |
0.43 |
T/L 27/41 |
T/L 20/30 |
